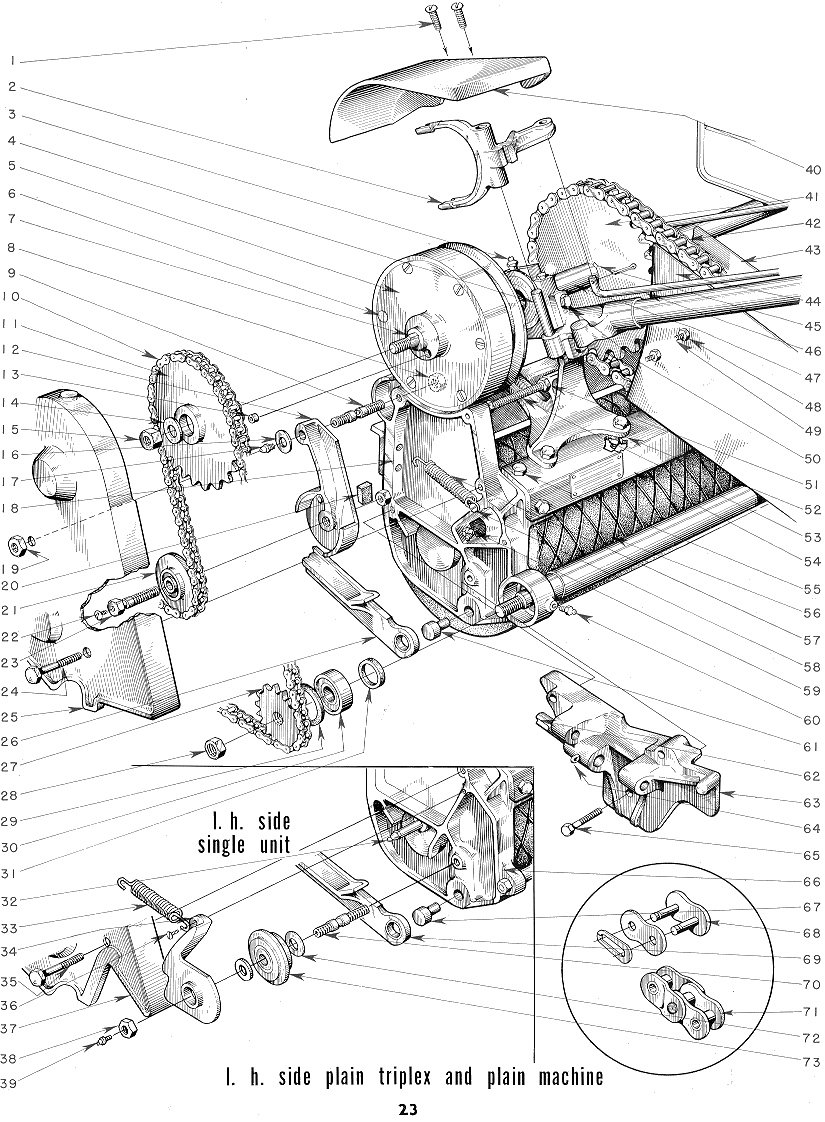

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

I

1409

Screw

1/4 - 28 x 5/8 Round Head

2

1210-1

Clutch Fork Malleable Iron

1210-0

Clutch Fork Die Cast 25 " Machine Light Duty

3

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

4

733

Groov-Pin

1/2 x 3 1/4

5

955

Cutter Clutch Cover (For Clutch Breakdown See Plate4)

(For Clutch Breakdown See Plate 4)

6

773

Clutch Cover Screw

10 - 32 x 5/8 Flat Head

7

776

Clutch Cover Key - Woodruff #9

8

777

Hex. Nut

1/2 x 20

9

1182-1

Swinging Idler Hanger Stud

10

1263

Cutter Chain - Plain Triplex

1/2 - 1/4 x .335 64 " Long #514

1257

Cutter Chain - Plain Single Unit - 8BR6 Motor

1/2 - 1/4 x .306 60 1/2 ",Long #41

1258

Cutter Chain - Plain Single Unit - 8R6 and 14R6 Motor

1/2 - 1/4 x .335 60 1/2 " Long #514

11

1233

Cutter Sprocket 28T. Light Duty 25

1/2 - 1/4 x 306

1237

Cutter Sprocket 28T. All Others I

1/2 - 1/4 x .335

12

1181 -1

Triplex Swinging Idler Hanger

13

781

Clutch Sprocket Key (Cutter Drive) Brass

14

778

Washer

1 1/2 - 33/64 x 1/8

15

777

Hex. Nut

1/2 x 20

16

1183

Swinging Idler Hanger Stud Washer

0.442 - 1 x 3/64

17

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

18

963-5

Tractor Side Plate L.H.

19

1184

Swinging Idler Hanger Stud Thin Nut

7/16 - 20

20

924.1

Cutter Chain Swinging Idler Hanger Rubber Bumper

21

1059

Cutter Chain Idler Roll Assembly

22

1186

Screw

1/4 - 28 x 1/4 " Round Head

23

805

Idler Roll Stud

24

1450

Cap Screw

5/16 - 24 x 2 Hex. Head

25

1180-T]

Cutter Chain Guard - Triplex

26

902

Cutter Unit Distance Link L.H.

Includes two No. 134ON Bushing-Nylon

27

970

Triplex Countershaft and Sprocket 20T

3/4 - 16 (L.H. Thread)

28

2025

Triplex Countershaft Lock Nut

5/8 - 18 Jam (R.H. Thread)

29

846

Felt

2 - 1 1/2 x 3/16

30

965

Triplex Countershaft Ball Bearing

31

966

Felt Washer

1 3/8 - 1 x 3/1 6

32

1880

Hydraulic Fitting Alemite #A-1669 or Lincoln #5007

33

812

Tension Spring

5/8 x 3 1/2

34

813

Cutter Chain Idler Guard - Lower

35

1450

Cap Screw

5/16 - 24 x 2 Hex. Head

36

773

Screw

10 - 32 x 5/8 Flat Head

37

1180-5

Cutter Chain Guard - Single

38

1184

Swinging Idler Hanger Stud Thin Nut

7/16 - 20

39

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

40

1303

Clutch Guard L.H.

41

1232-A

Clutch Shaft Sprocket 25T. 2511 with 8R6 and

5/8 - 3/8 x .400 (1 3/16 Bore)

8BR6 Motors

1236

Clutch Shaft Sprocket 25T. All Others

3/4 - 1/2 x 15/32 (1 3/16 Bore)

42

1255

Motor Chain 8R6

5/8 x 3/8 x .400 x 31 114" long

2132

Motor Chain 8BR6

5/8 x 3/8 x .400 x 30 5/8 " long

1593

Motor Chain All Others

3/4 x 1/2 x 15/32 x 38 1/4" long

43

1726

Motor Chain Guard 70" and 75" Inner for 14R6 Motor

44

1725

Motor Cho in Guard 70" Outer for 14R6 Motor

1727

Motor Chain Guard 75" Outer for 14R6 Motor

1745

Motor Chain Guard 30" Machine 14R6 Motor

1747

Motor Chain Guard NPR6,6R6, BR6 and 8BR6 Motors

45

768

Woodruff Key, #807 (A) - Heat Treated

46

713

Clutch Control Rod (Cutter)

47

1209

C I utch Shaft 25 " and 70 " (P la i n)

1156

C I utch Shaft 30 " and 75 " (P la i n)

48

1370-1

Hex. Nut

1/4 - 20

49

708

Cap Screw

3/8 - 24 x I Hex. Head

50

707

Cap Screw

3/8 - 24 x 3/4 Hex. Head

51

724

Hex. Nut

3/8 - 24

52

758-X

Clutch Shaft Bracket L.H.

757-X

Clutch Shaft Bracket R.H.

53

1007

Screw

3/8 - 24 x 5 1/8

54

800 -A

Tractor Cross Frame - Rear

1154

30" Tractor Cross Frame - Rear

55

707

Cap Screw

3/8 - 24 x 3/4 Hex. Head

56

lO7O.X3

Tractor Roll Assembly (Rubber)

Includes 1 - #842, 1 - #1381

57

812

Tension Spring

5/8 x 3 1/2

58

773

Screw

10 - 32 x 5/8 Flat Head

59

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

60

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

61

817

Stud

62

1447

Side Unit Pivot Bracket Stop Bar

64

1898

Cotter Pin

1/8 x 1 114

65

995

Screw

3/8 - 24 x 2 Hex. Head

66

798-5

Tractor Side

Plate L.H. Includes 1 - #1385, 1 - #,1781, 1 - # 1782, 1 - #817

67

817

Stud

68

928

Connecting Link

1/2 - 1/4 x .306 #41 Chain

1027

Master Connecting Link

1/2 - 1/4 x .335 #514 Chain

1027-W

Master Connecting Link - Wide Style

1/2 - 5/16 x .335 # 515 C ha in

2070

Connecting Link

3/4 - 1/2 x 15/32 # 60 Chain

2076

Connecting Link

5/8 - 3/8 x .400 #50 Chain

69

902

Cutter Unit Distance Link L.H.

Includes Two No. 134ON Bushings-Nylon

70

1182-1

Swinging Idler Hanger Stud

71

929

Offset and Roller Link Assembly

1/2 - 114 x .306 #41 Chain

1028

Offset and Roller Link Assembly

1/2- 1/4 x .335 #514 Chain

1028-W

Offset and Roller Link Assembly

1/2- 5/16 x .335 #515 Cho in

2071

Offset and Roller Link Assembly

3/4 x 1/2 x 15/32 #60 Chain

2077

Offset and Roller Link Assembly

5/8 x 3/8 x .400 #50 Chain

72

778

Washer

1 1/8 - 33/64 x 1//8

73

1059

Cutter Chain Idler Roll Assembly
