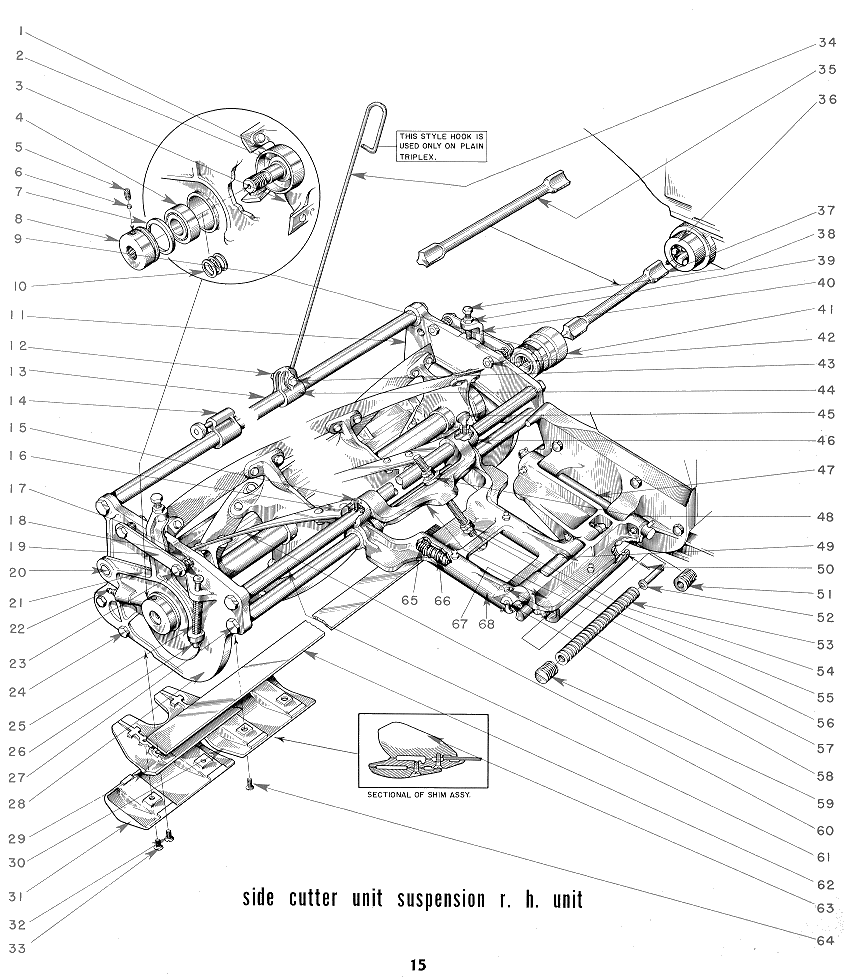

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

876

Cutter Reel Bearing Guard Cup

2

1488

Steel Washer

I x 1 5/8 x 3/32

1488-1

Steel Washer

1 x 1 5/8 x 1/16

3

867

25" Cutter Reel and Shaft Assembly - 5 Blade

4

869

Cutter Reel Ball Bearing - Single Felt Seal

5

761

Socket Head Set Screw

5/16 - 24 x 7/16 Cup Point

6

762

Set Screw Slug - Brass

7

848

Felt Washer

1 7/8 x 1 1/2 x 3/16

8

875

Lock Nut R.H. Thread for R.H. Unit

990

Lock Nut L.H. Thread for L.H. Unit

9

848

Felt Washer

1 7/8 x 1 1/2 x 3/16

10

1310

Cutter Reel Ball Bearing Shim

.100 " Thick

870

Cutter Reel Ball Bearing Shim

1/16" Thick

871

Cutter Reel Ball Bearing Shim

1/32 " Thick

872

Cutter Reel Ball Bearing Shim

- 010 " Thick

873

Cutter Ree I Ball Bearing Shim

W5" Thick

11

888-2

Cutter Side Plate L.H.

Includes 1 - #817 Stud

12

858

Cap Screw

3/8 - 24 x 1 3/4 Hex. Head

13

900-XI

Side Unit Spacer Bar - DriIled with 1 Spot

14

1010-A

Cutter Elevating Hook Assembly

Includes I -#1010

1 -#1403

1 -#1404

15

761

Socket Head Set Screw

5/16 - 24 x 7/16 Cup Point

16

1008

Side Unit Locating Collar

17

787

Spring I

5/8 x 7/8

18

895-1

Cu tter Reel Pressure Spring Pin

19

891

Cutter Reel Bearing Bracket Strop

20

134ON

Bushing-Nylon

21

889-1

Cutter Reel Bearing Bracket Malleable Iron

Includes I -#134ON Bushing-Nylon

22

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

23

892

Cap Screw

3/8 - 24 x 1 1/2 Hex. Head

24

820

Cap Screw

3/8 - 24 x 1 1/4 Hex. Head

25

894

Cutter Reel Pressure Spring

26

1891

Cotter Pin

1/16 x 3/8

27

1056

Bolt

1/2 - 20 x 1 1/4 Hex. Head

28

887.2

Cutter Reel Side Plate R.H.

Includes 1 -#817 Stud

29

1841

Gouge Shoe Shim 1/2 R.H.

1842

Gouge Shoe Shim 1/2 L.H.

30

1314-1

Iron Gouge Shoe - Center Section 3/4 " Cut

31

1315-1

Iron Gauge Shoe - R.H. 3/4 " Cut

1316-1

Iron Gouge Shoe - L.H. 3/4 " Cut

32

885

Flat Head Screw

5/16 - 18 x I Zinc Plated

33

884-3/4

Flat Head Screw

5/16 - 18 x 3/4 Zinc Plated

34

1061

Side Unit Carrying Hook - Plain Machine

35

2036

Universal Drive Shaft - 9 1/4 " Long

37

1015

Universal Connecting Shaft - 6 7/8 " Long

38

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

39

744

Hex. Nut

5/16 - 24

40

2056-2

Cutter Reel Bearing Bracket L.H. Malleable Iron

Includes 1 - #134ON Bushing Nylon

41

989

Reel Drive Socket Assembly L.H. Thread (For R.H.Unit)

Includes 3 - #991 1/2 " Steel Ball

988

Reel Drive Socket Assembly R.H. Thread (For L.H. Unit)

Includes 3 - #991 1/2" Steel Ball

I - #992-1 Ball Retainer Cup 1 15/16" I.D.

42

724-J

Hex. Nut

3/8 - 24 Jam

43

724

Hex. Nut

3/8 - 24

44

1062

Side Unit Carrying Hook Pivot Clamp

45

1009

Thumb Screw

5/16 - 24 x 5/8

46

1008

Side Unit Locating Collor

47

996

Side Unit Pivot Bracket Pivot Pin

8 5/16 " Long

Includes 1 - #703 Groov-Pin

3/16 x 1 1/4

48

1860

Hardened Washer

7/8 x 35/64 x 1/8

49

1449

Side Unit Angle Bracket Spacer

1.635"Long

50

1892

Cotter Pin

1/16 x 1/2

51

1004

Side Unit Balancing Spring Pin Bearing

52

1002-3

Side Unit Balancing Spring Pin and Head Assembly

53

1001

Side Unit Balancing Spring

54

724.J

Hex. Nut

3/8 - 24 Jam

55

1007

Screw

3/8 - 24 x 5 1/8

56

1006

Side Unit Cutter Adjusting Bracket

57

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

58

1000

Side Unit Cutter Bracket Pivot Pin

7" Long

59

1005

Side Unit Balancing Spring Plug

60

867

25 " Cutter Reel and Shaft Assembly - 5 Blade

61

900-X6

Side Unit Spacer Bar Drilled with 6 Spot

62

877

Stat i onary Blade - 25

63

1221

25" Blade Back

64

884-7/8

Flat Head Screw

5/16 - 18 x 7/8 Zinc Plated

65

1005

Side Unit Balancing Spring Plug

66

1001

Side Unit Balancing Spring

67

997.1

Side Unit Angle Bracket R.H. Assembly

Includes I - #1448 Stop Bar

1-#1449 Steel Spacer

998-1

Side Unit Angle Bracket L.H. Assembly

Includes 1 - #1448 Stop Bar

I - A 1449 SteeI Spacer

68

999

Side Unit Cutter Bracket
