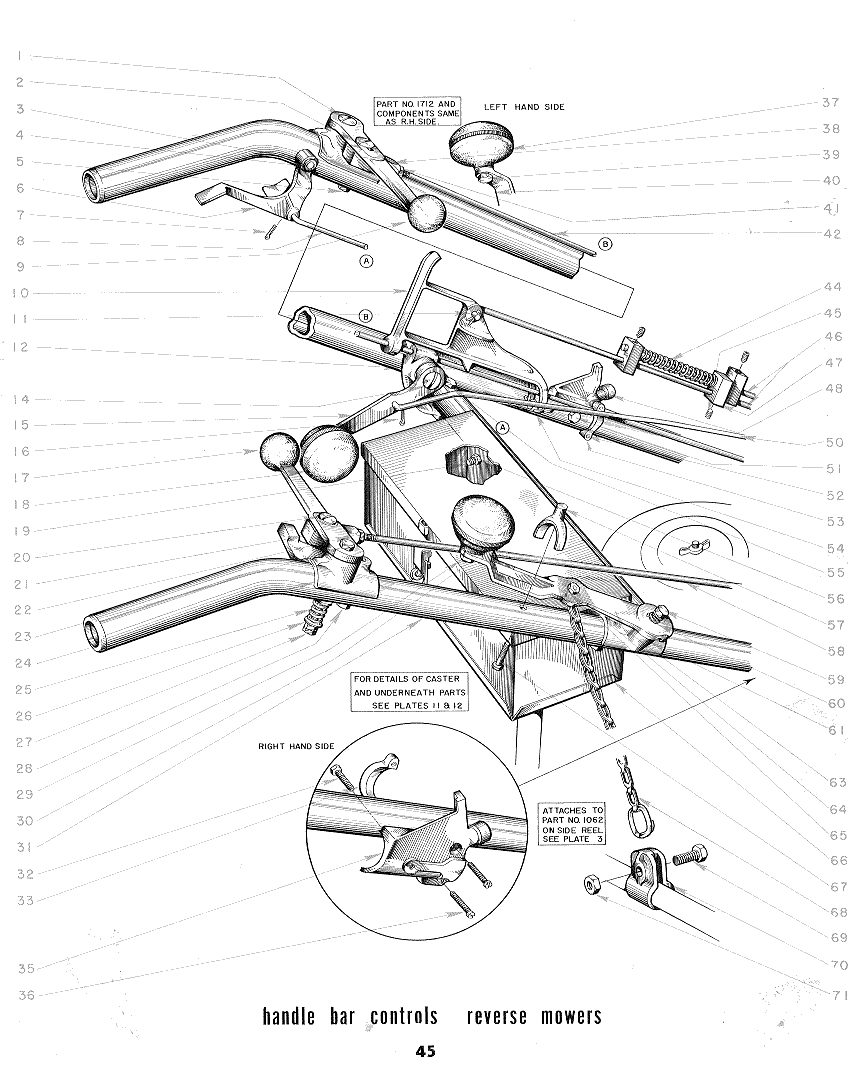

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

711

Clutch Control Hand Lever Fulcrum Stud

2

711

Clutch Control Hand Lever Fulcrum Stud

3

2149

1/4" Steel Burr #991

4

2136

Speed Control Handle Rivet

5

1628

Cap Screw

5/16 - 24 x 1 3/4 Hex. Head

6

1345-2

Speed Control Hand Lever

7

1892

Cotter Pin

1/16 x 1/2

8

1613

Speed Control Rod for 14R6 Motor

9

1620

Cutter Clutch Control Lever

10

1753

Brake Lever Handle - Reverse Machine

11

1893

Cotter Pin

3/32 x 1/2

12

1752

Clutch Rod Guide and Elevating Lever Bracket - Reverse Machine

14

711

Clutch Control Hand Lever Fulcrum Stud

15

1751 -1

Front Cutting Unit Elevating Lever - Reverse Machine

16

1893

Cotter Pin

3/32 x 1/2

17

1826

Tractor Clutch Control Lever

18

1776 -1

Lifting Lever Ball

1776

Cap Screw

3/8 - 24 x 5/8 Flat Head

19

1369 -1

Machine Screw

1/4 - 20 x 1 3/4 Round Head

20

711

Clutch Control Hand Lever Fulcrum Stud.

21

1626

Clutch Control Rod Ends

22

724-J

Jam Nut

3/8 - 24 Hex.

23

1645

Cap Screw

1/4 - 24 x 3 1/2 Hex. Head

24

1819

Tractor Clutch Control Mounting Bracket

25

787

Coil Spring (60#)

5/8 x 7/8

26

1595

Steel Washer

25/64 x 13/16 x 1/16

27

724-J

Jam Nut

3/8 - 24 Hex.

28

1628

Cap Screw

5/16 - 24 x 1 3/4 Hex. Head

29

707

Cap Screw

3/8 - 24 x 3/4 Hex. Head

30

1715

Lifting Lever Ball

31

2188

Handle Bar Assembly

2189

Handle Bar Assembly

32

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

33

948

Handle Bar Clamp

35

946

Handle Bar Elevating Cutter Saddle

36

796

Screw

10 - 32 x 1 Fillister Head

37

1715

Side Unit Lifting Lever Ball

38

1626

Clutch Control Rod Ends

39

707

Co Screw

3/8 - 24 x 3/4 Hex. Head

40

1712

Sidpe Unit Lifting Lever

41

724-J

Jam Nut

3/8 - 24 Hex.

42

1666

Cutter Clutch Rod

44

1671

Brake Rod Spring

45

761

Set Screw - Socket Head

5/16 - 24 x 7/16 Cup Point

46

1762

Brake Rod

47

1670

Broke Rod Runner

48

947

Handle Bar Elevating Cutter Saddle

49

2188

Handle Bar Assembly 701, Reverse (With 1-705 and 1-1569 Brazed)

2189

Handle Bar Assembly 7511 Reverse (With 1-705 and 1-1569 Brazed)

50

1761

Front Cutting Unit Elevating Rod

51

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

52

796

Screw

10 - 32 x I Fillister Head

53

948

Handle Bar Clamp

54

1893

Cotter Pin

3/32 x 1/2

55

1628

Cap Screw

5/16 - 24 x 1 3/4 Hex. Head

56

2204

Hex Nut

1/4 - 20 Tensilock

57

1773

Handle Bar Stud for Side Unit Lifting Lever

58

1665

Tractor Clutch Rod

59

708

Cap Screw

3/8 - 24 x I Hex- Head

60

729

Spring

3/16 x 3/8

61

1621

Side Unit Lifting Lever Mounting Bracket

63

1712

Side Unit Lifting Lever

64

1409

Screw

1/4 - 28 x 5/8 Round Head

65

1370

Hex. Nut

1/4 - 28

66

752

Tool Box

67

1628

Cap Screw

5/16 - 24 x 1 3/4 Hex. Head

69

858

Cap Screw

3/8 - 24 x 1 3/4 Hex. Head

70

1062

Side Unit Carrying Hook Pivot Clamp

71

724.J

Jam Nut

3/8 - 24 Hex
