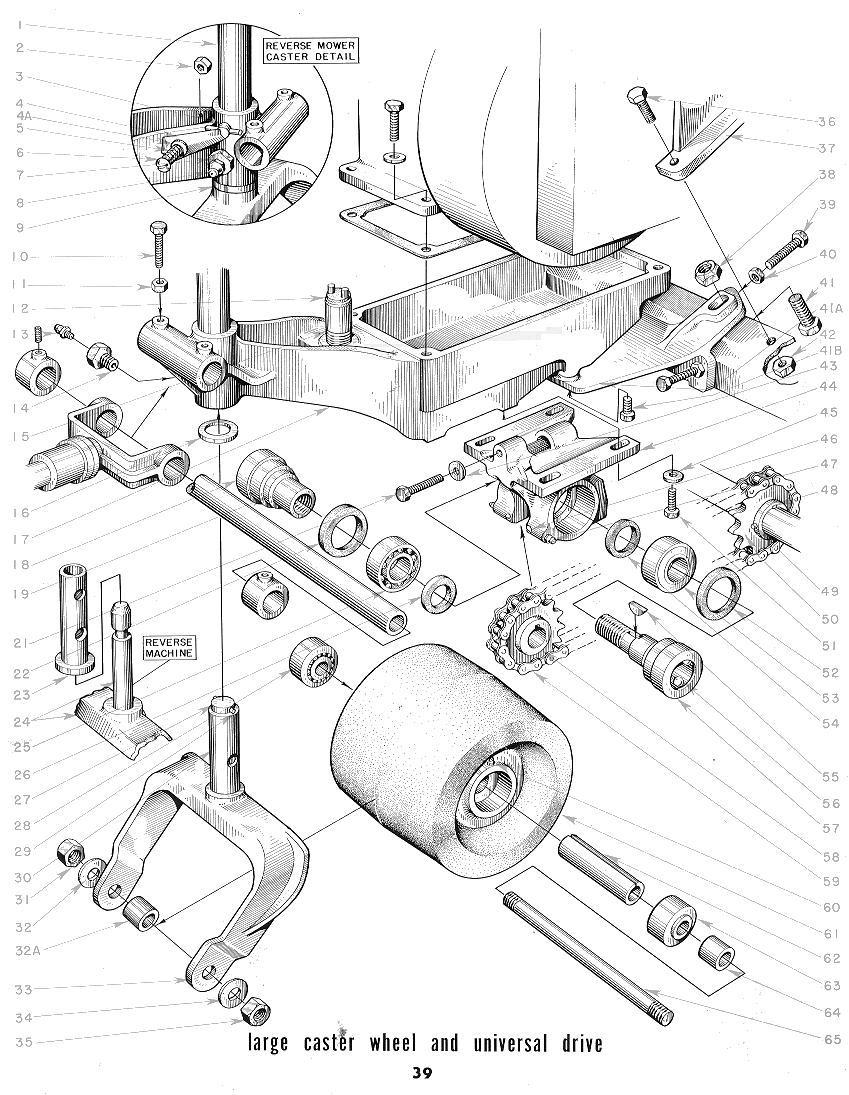

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

2188

Handle Bar Assembly 70" - Reverse Machine

(With 1-705 and 1-1569 Brazed)

2189

Handle Bar Assembly 75" - Reverse Machine

(With 1-705 and 1-1569 Brazed)

2

1370-1

Hex. Nut

1/4 - 20

3

1717

Castep Post Release Pin Assembly

Includes I - #703L Groov-Pin No. I

3/16 x 1 3/8

4

1718

Caster Post Release Lever Reverse Machine

4A

2149

1/4" Steel Burr

5

1719

Caster Post Relea 'e Spring Reverse Machine

6

1369-1

Caster Post Release Lever Screw

1/4 - 20 x 1 3/4 Round Head

7

8 36 -1

Caster Post Bush i ng D ow el

8

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

9

1716

Caster Post Bushing - Reverse Machine

10

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

11

744

Hex. Nut

5/16 - 24

12

2177

Oil Filler Cap - Nylon - Briggs and Stratton #66768

13

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

14

8 36 -1

Caster Post Bushing Dowel

15

2176

Oil Filler Pipe - For Motor Base - For B & S #230472

16

1625

Caster Post Bushing Thrust Washer (Hardened)

1 1/2 x 1 3/32 x 1/8

17

1506

Motor Base 14R6 Motor & 19R6

1506-23

Motor Base 23AR6 Motor

18

992-1

Ball Retainer Cup (Universal Joint)

19

1013

Universal Drive Socket L.H. Assembly

Includes I - #1013, 3 - #991, 1 - #992-1

21

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

22

846

Felt Washer

2 x 1 1/2 x 3/16

23

1716

Caster Post Bushing - Reverse Machine

24

979-XR

Caster Fork Assembly - Reverse Machine Includes I - # 1729

1729

Caster Post

25

1109

Ball Bearing (Shield on One Side)

26

966

Felt Washer

1 3/8 x I x 3/16

27

977

Caster Post - Plain Machine

28

1071

Caster Wheel Ball Bearing

29

716

Caster Post Groov-Pin No. 5

3/16 x 1

30

978

Caster Post Bushing - Plain Machine

31

777

Hex. Nut

1/2 - 20

32

778

Washer

1 1/8 x 33/64 x 1/8

3 2 A ....

831-X

Caster Wheel Spacer

5/8 Wide

33

979-X

Caster Fork Assembly - Plain Machine Includes 1 -

#977 Caster Post

34

778

Washer

1 1/8 x 33/64 x 1/8

35

777

Hex. Nut

1/2 - 20

36

708

Cap Screw

3/8 - 24 x I Hex. Head

1633-1

Motor Chain Guard Bracket - 70" Reverse Only

38

1780

Motor Adjusting Bracket Lock Nut

1/2 - 20 Flex Lok

39

767

Cup Screw

5/16 - 24 x 1 1/2 Hex. Head

40

744

Hex. Nut

5/16 -24

41

1056

Bolt

1/2 - 20 x I 1 /4

4]A

1402

Motor Base Bracket

41 B

708-1

Bolt

3/16 - 16 x 1

42

1735

Lock Nut

3/8 - 24 N lok

43

923

Washer

3/4 - 11/32 x 1/16

44

101 1-H

Universal Drive Bracket (For High Cut 1 1/4" or Higher)

1011

Universal Drive Bracket (For Low Cut up to 1 114")

45

923

Washer

3/4 - 11/32 x 1/16

46

1350-2

Machine Screw

10 - 32 x 3/16 Round Head

47

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

48

768

Woodruff Key No. 807 (A) Heat Treated

49

706

Groov-P in

3/16 - 1 1/2

50

1225

Countershaft Center Sprocket 20T

1/2 x 1/4 x .335 (1 3/16 Bore)

51

746-1

Cap Screw

5/16 - 18 x 1 Hex. Head

52

846

Felt Washer

2 x 1 1/2 x 3/16

53

1109

Ball Bearing (Shield on One Side)

54

966

Felt Washer

1 3/8 x 1 x 3/16

55

776

Woodruff Key No. 606 (9) Heat Treated

56

1012

Universal Drive Socket and Sprocket Shaft R.H. Assembly

Includes I - #1012, 3 - #991, 1 - #992-1

991

1/2"Steel Ball (Universal Joint )

57

992-1

Ball Retainer Cup,(Universal Joint)

1 15/16 I.D.

58

1227

Universal Shaft S Pr ocket 17T

1/2 x 1/4 x .335 (3/4 Bore)

59

1264

Universal Chain 23" Long

1/2 x 114 x .335 #514

1 264-1

Universal Chain 22 1/21, Long used in C Triplex Mower

60

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

61

124A-X

Caster Wheel Assembly - 6" Rubber Face

62

830

Caster Wheel Ball Bearing Spacer (inner)

3/4 O.D. .505 to .515 I.D. 3 3/8"Long

63

1071

Caster Wheel Ball Bearing

64

831-X

Caster Wheel Spacer

5/8 Wide

65

975-X

Caster Wheel Spindle

7 1/2"Long
