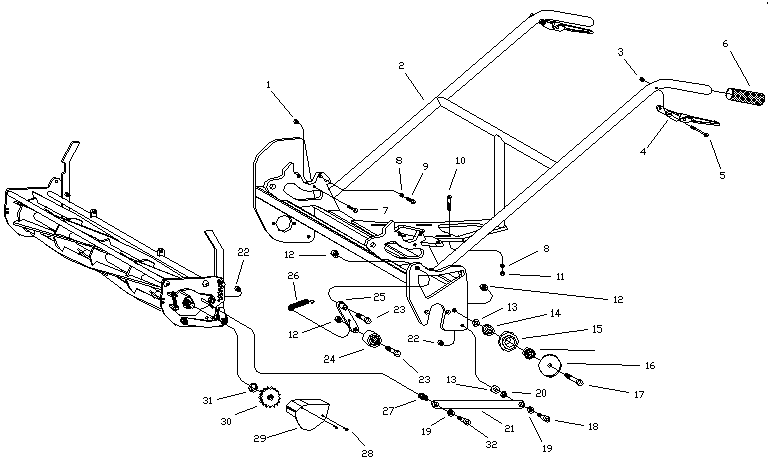

Key

Part

Description

Quan.

No.

No.

Req.

1

Nut; Jam

2

2

5200-25

Frame Assembly; 25'

1

5200-30

Frame Assembly; 30"

1

3

5083

Nut; Nylon Jam Lock

2

4

5026

Clutch Hand Lever

2

5

5079

Screw; Cap

2

6

5051

Grip; Handlebar

2

7

Screw; Cap

2

8

3269

Lockwasher

8

9

3194-1

Screw; Cap

4

10

5080

Screw; Cap

4

11

744-1

Nut

4

12

777-J

Nut; Jam

3

13

778

Washer

1

14

1059-B

Bearing

2

15

1059-A

Chain Idler

1

16

5107

Disc; Chain Guide

1

17

Screw; Cap

1

18

5048

Bolt; Frame Arm

1

19

5046

Bushing

2

20

1357

Washer

1

21

5044

Arm; Link

1

22

724-JI

Nut; Jam

2

23

5090

Screw; Cap

2

24

1060

Chain Idler

1

25

5088

Bracket; Idler

1

26

Spring

1

27

5067

Spring

1

28

Screw

2

29

5055

Guard; Engine Chain

1

30

1238

Sprocket; 17T

1

31

1310

Shim; Reel

Varies

32

5049

Bolt; Reel Arm

1
